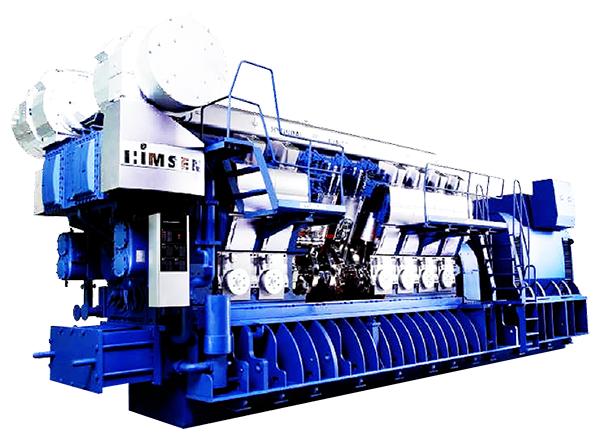

H32/40 I main parameter
Cylinder diameter: 320 mm
stroke: 400 mm
|
speed |
720 rpm |
750 rpm |
||
|
frequency |
60 Hz |
50 Hz |
||
|
|
Eng.kW |
Gen.kW |
Eng.kW |
Gen.kW |
|
12H32/40V |
6000 |
5760 |
6000 |
5760 |
|
14H32/40V |
7000 |
6720 |
7000 |
6720 |
|
16H32/40V |
8000 |
7680 |
8000 |
7680 |
|
18H32/40V |
9000 |
8640 |
9000 |
8640 |
|
20H32/40V |
10000 |
9600 |
10000 |
9600 |
Based on generator efficiency 96 %。
Engine fuel consumption rate (SFOC)
|
load |
720rpm |
750 rpm |
|
100% |
179g/kWh |
181g/kWh |
Lubricating oil consumption rate (SLOC)
Lubricating oil: 0.7 g/kWh
Outline size
|
speed |
Cylinder |
size (mm) |
dry weight(t) |
||||
|
|
A |
B 1) |
C 1) |
H |
Engine2) |
Generator Set 1),3) |
|
|
720rpm |
12 |
6624 |
3760 |
10384 |
4723 |
56 |
108.8 |
|
14 |
7295 |
3860 |
11155 |
4723 |
63.3 |
121.3 |
|
|
16 |
7914 |
3479 |
11393 |
4723 |
69.1 |
130.9 |
|
|
18 |
8585 |
3859 |
12444 |
4723 |
76.3 |
141.2 |
|
|
20 |
9344 |
3659 |
13003 |
4723 |
84 |
153.9 |
|
|
speed |
Cylinder |
size (mm) |
dry weight (t) |
||||
|
|
A |
B 1) |
C 1) |
H |
Engine2) |
Generator Set 1),3) |
|
|
750rpm |
12 |
6624 |
3760 |
10384 |
4723 |
56 |
108.8 |
|
14 |
7295 |
3860 |
11155 |
4723 |
63.3 |
121.3 |
|
|
16 |
7914 |
3479 |
11393 |
4723 |
69.1 |
130.9 |
|
|
18 |
8585 |
3859 |
12444 |
4723 |
76.3 |
141.2 |
|
|
20 |
9344 |
3659 |
13003 |
4723 |
84 |
153.9 |
|
