Marine propulsion system
Tier II, Tier III (retrofitting SCR)

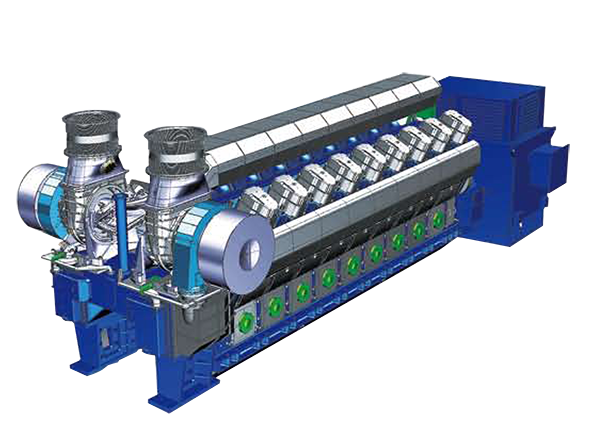

H46/60P I Cylinder diameter: 460 mm, stroke: 600 mm
Variable pitch propeller
Reduce the noise and vibration level as much as possible by increasing the angle of the arch
Fixed pitch propeller
Ensure the best driving force and minimize the noise and vibration level
Outline size
|
600rpm |
Cylinder |
Rated output(kW) |
Engine size(mm)Dry weight(t) |
|
|||||
|
E1 |
H1 |
H2 |
F1 |
W1 |
W2 |
Dry weight |
|||
|
6 |
7500 |
8516 |
3302 |
590 |
965 |
2100 |
1200 |
126 |
|
|
7 |
8750 |
9336 |
3302 |
590 |
965 |
2100 |
1200 |
138 |
|
|
8 |
10000 |
10156 |
3473 |
590 |
965 |
2100 |
1228 |
151 |
|
|
9 |
11250 |
10976 |
3743 |
590 |
965 |
2100 |
1228 |
166 |
|
